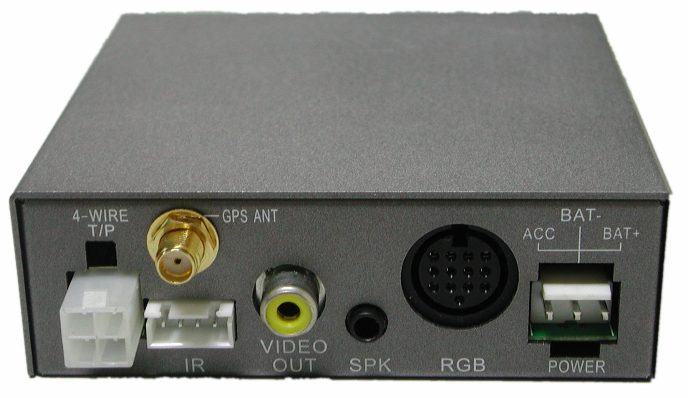

PS-982 (GPS Navigator with Video Input)




Features:
  ‧Built-in GPS receiver (up to 64-channel)
‧Support IR remote control or touch screen operation
‧Support RGB video output or standard TV output formats for various vehicle monitors
　 (480*234 or 800*480)
‧Support AR Navigation with video input signal (video output of camera or DVR)
‧Output GPS NMEA data for DVR application



Specifications:


‧CPU: ARM11 500MHZ (SiRF A4)
‧Memory: 128MB NAND FLASH / 128MB SDRAM (DDR 166MHZ)
‧Operating system: Windows CE 6.0 core
‧Operation:  IR remote control, Touch Screen
‧Storage media: Supports SD card or MMC card
‧Video output: CVBS & RGB mode
‧Speaker:  0.5W @ 8Ω
‧DC Power: 9~20V DC
‧Power consumption: 3.4W @ 12V DC
‧Operating Temperature: 0 °C to +70 °C
‧Dimension: (w) 95 mm* (L) 95 mm* (H) 30 mm
