Model

PS883

Systems

OS.

Embedded Linux 3.10

Start up time

< 20 seconds (from power on to recording)

Language

English/simplified Chinese/traditional Chinese (other languages can be customized.)

Storage

2 SD cards (up to 256GB) or USB HDD ( or SATA HDD can be customized.)

Voltage input

Input: 9 ~ 30V DC

Voltage output

12V/2A

Power Consumption

6W @ 12V (not including cameras)

Operating temperature

 -10 to 70°C

Video

Video input

TVI / AHD / CVBS hybrid

Maximum 4 x 720p camera inputs

Video output

1 CVBS 1Vpp 75Ω  (VGA / HDMI optional)

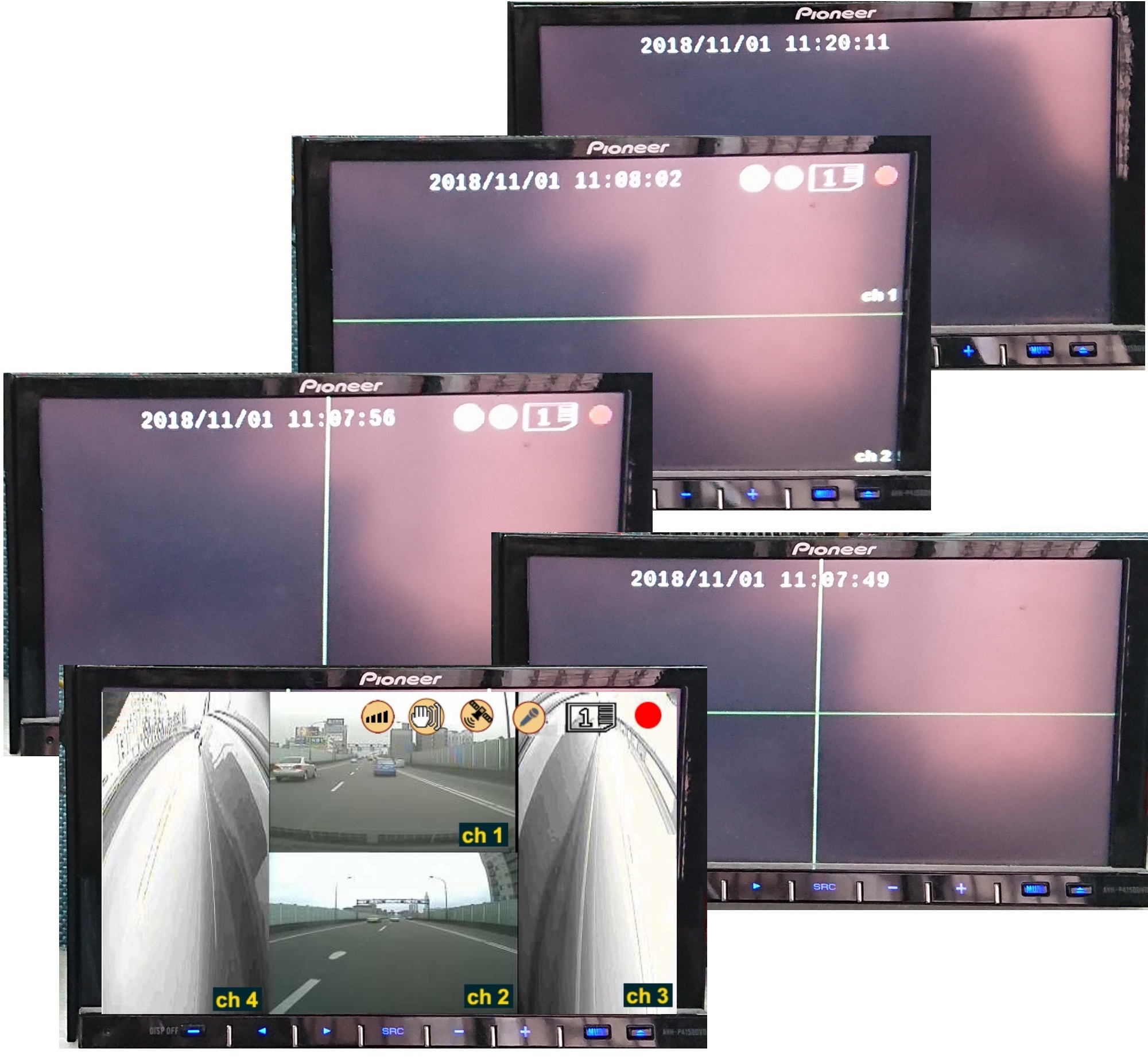

Preview

1 / 4 multi mode images

Recording resolution

Depend on Video input

Recording

Auto start to record after power on.

Video compression

H.264 (High profile)

Audio

Audio Input

1 mono

Audio compression

ADPCM (4-bit, 16kHz)

I/O

USB

Supports USB 2.0 for USB Disk recording

SATA

1 (optional)

Trigger in

5

Trigger out

1  (TTL positive)

Alarm

Buzzer

Video input signal loss or bad storage.

Sensor

G Sensor

3-axes accelerometer

Chassis

Dimensions

118 x 95 x 27 mm

Weight

545 g

Material

metal

Others

Backup Power

Super Capacitors for power loss emergency shutdown.

LED

Red LED for system status

Green LED for SD R/W status

Clock

Internal, time sync from GPS (if is available)

GPS

Support GPS/GLONASS external module (9600 bps)

GPS Stamp

Yes if GPS is available

Time Stamp

Yes

Other fixed strings

Can be customized

File Format

AVI for each channel

Record Periods

5 minutes / file

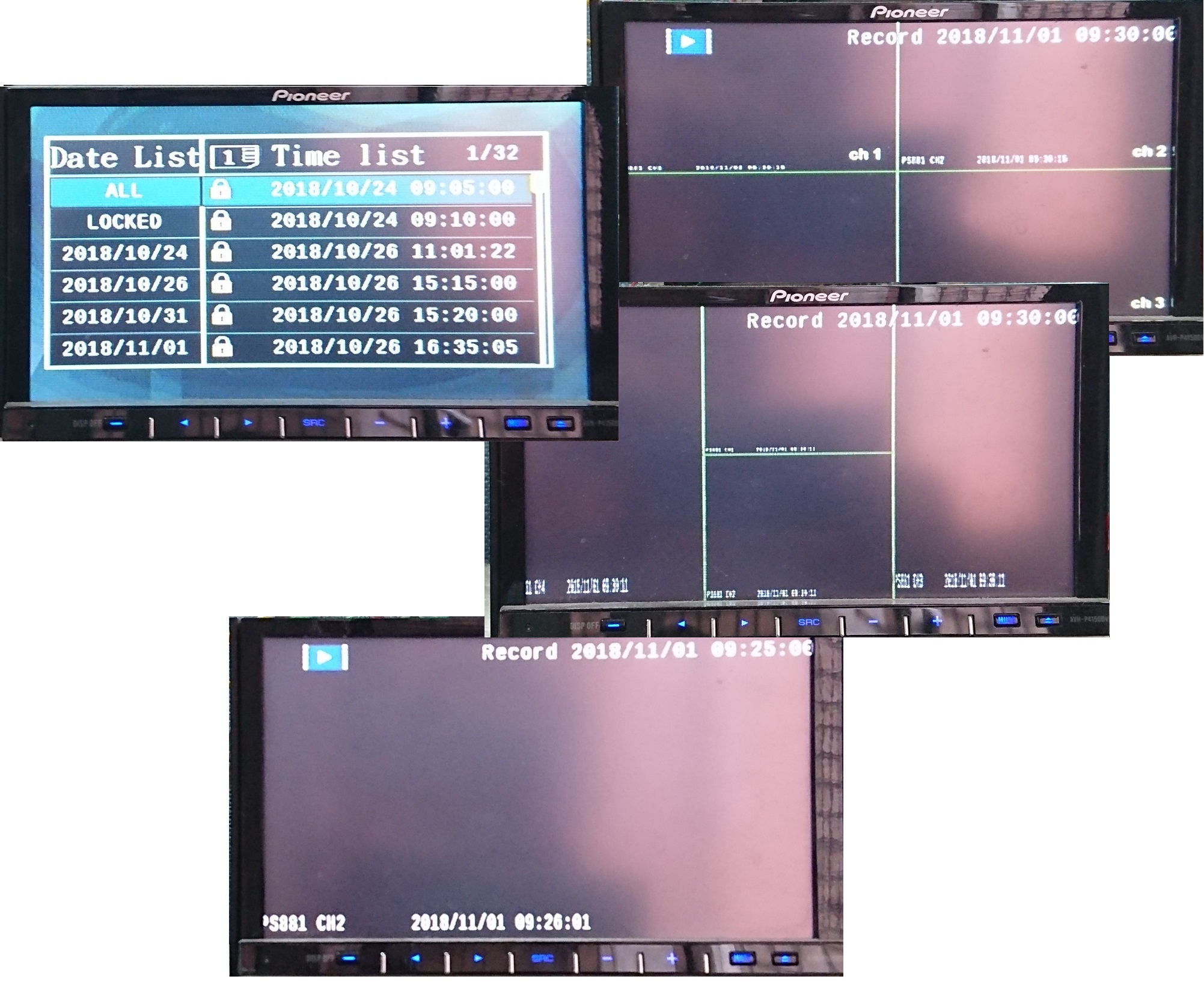

Playback speed

Forward / Rewind 1 – 8x

Power Off Delay

0 seconds, 30 seconds, 3 minutes, 1 hour, 2 hours

Trigger Display

Trigger to display channel can be set by user.

File Protect

Can be set by G-sensor event or by trigger input event.

Operation

By IR remote controller. Key tone is available.

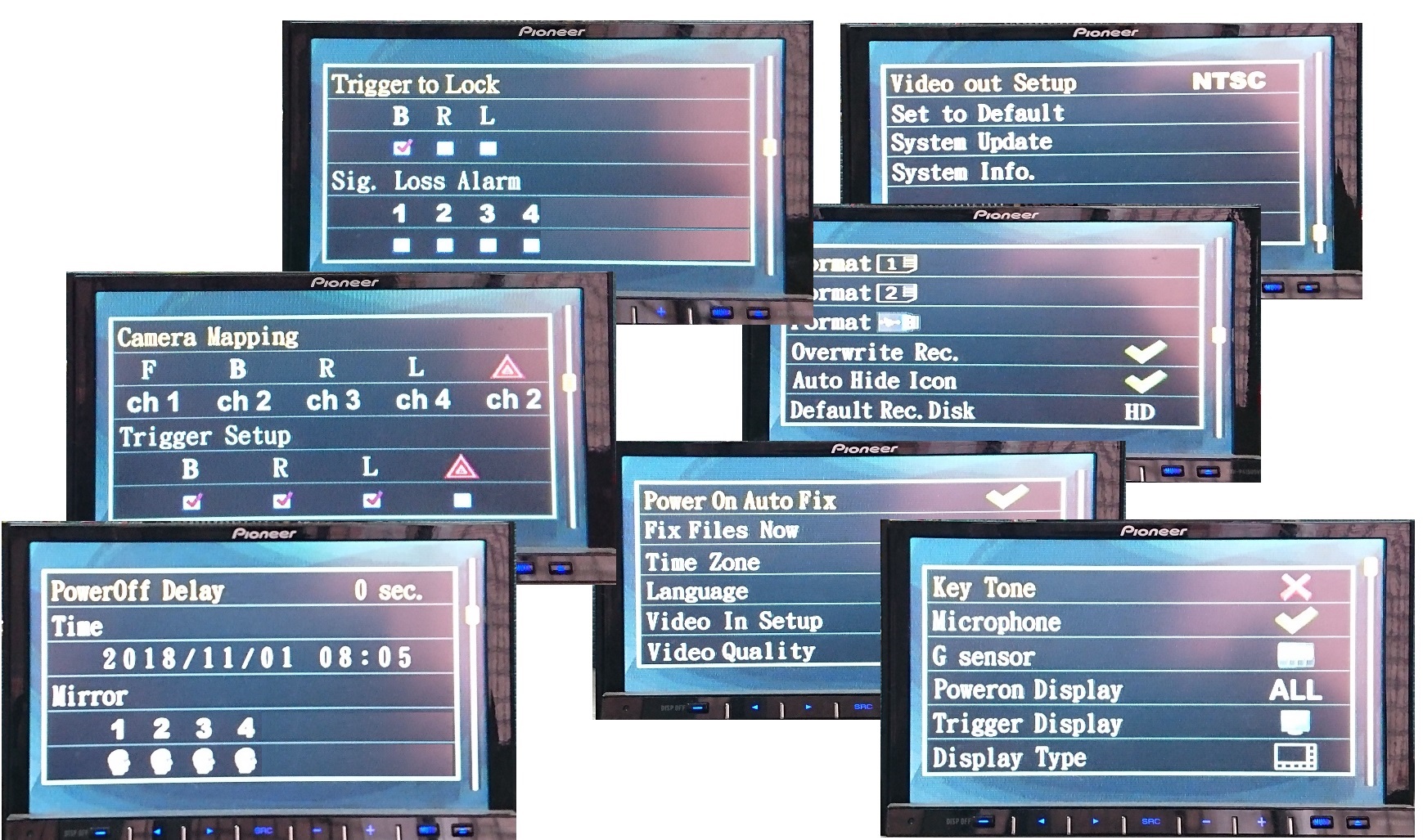

User Interface

Clear and intuitive operation for in-car environment.

SD backup

Normally start recording by 1^st SD card. Auto switching to 2^nd SD card while 1^st SD card is corrupted or is not found.

FW update

By SD card
