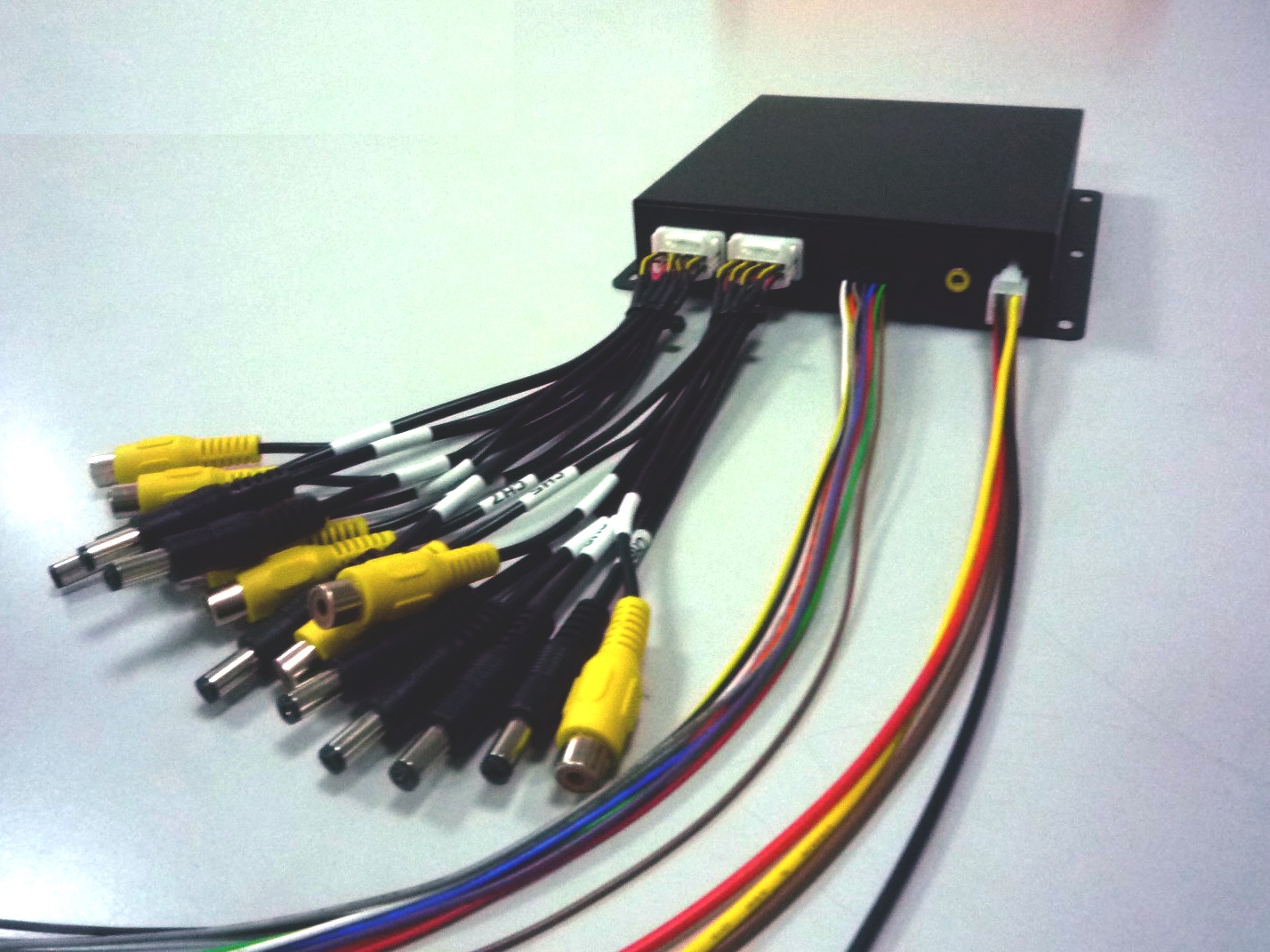

PS-881 (8CH 1080N/720P/D1 AHD/TVI Hybrid car DVR)

Multi Mode Preview Display

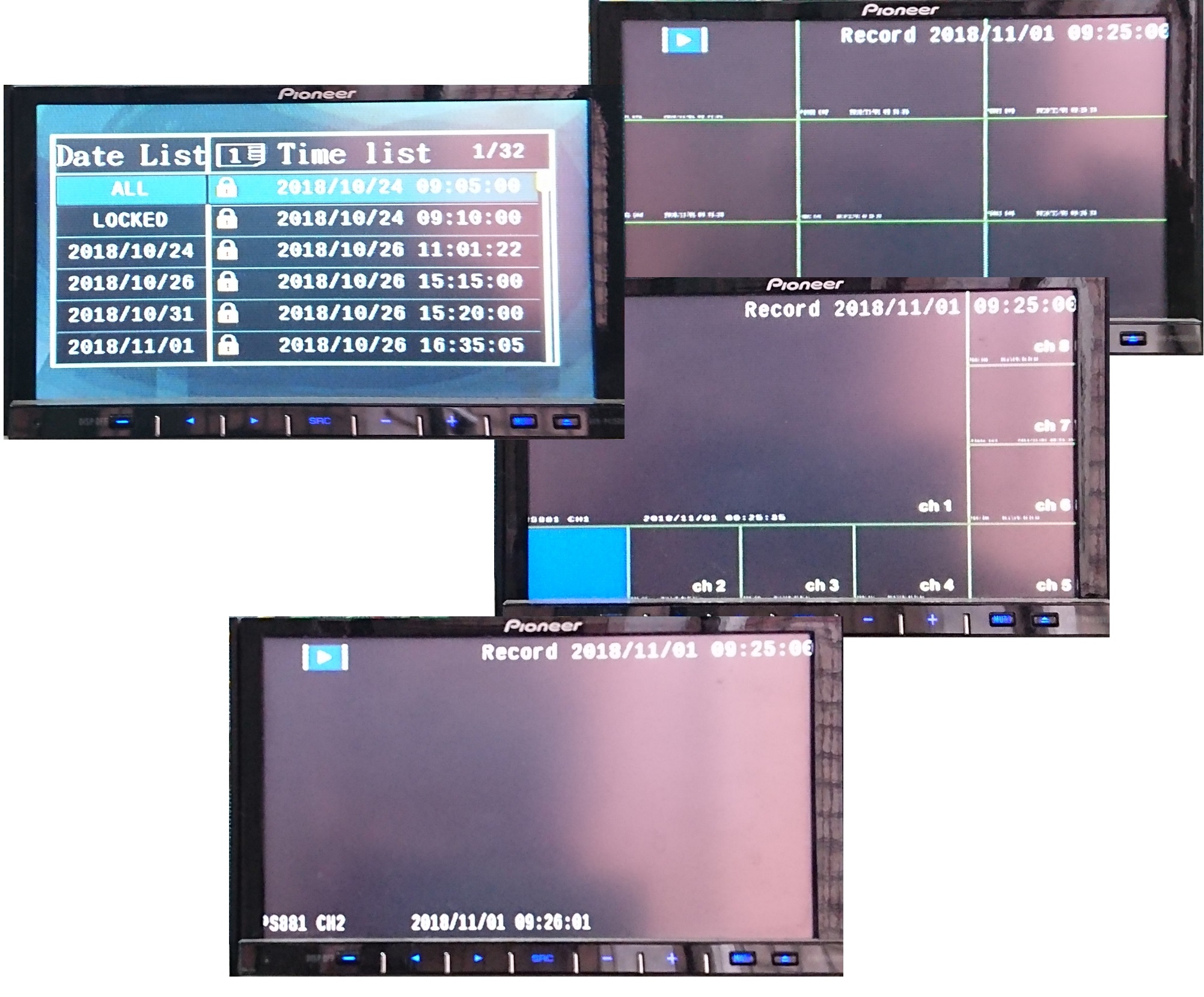

On site playback

Clear and intuitive operation

Easy operation Demonstration (using 4 D1 camera)

Blind spot assistant Demonstration (using 4 D1 camera)







Embedded Linux 3.10

Start up time

< 20 seconds (from power on to recording)


English/simplified Chinese/traditional Chinese (other languages can be customized.)


2 SD cards (up to 256GB) or USB HDD ( or SATA HDD can be customized.)

Voltage input

Input: 9 ~ 30V DC

Voltage output

Output: 12V/4A

Power Consumption

6W @ 12V (not including cameras)

Operating temperature

 -10 to 70°C


Video input

TVI / AHD / CVBS hybrid

Maximum 8 x 1080n/720p camera inputs

Video output

1 CVBS 1Vpp 75Ω  (VGA / HDMI optional)


1 / 4 / 8 multi mode images

Recording resolution

Depend on Video input


Auto start to record after power on.

Video compression

H.264 (High profile)


Audio Input

1 mono

Audio compression

ADPCM (4-bit, 16kHz)



Supports USB 2.0 for USB Disk recording


1 (optional)

Trigger in


Trigger out

1  (TTL positive)



Video input signal loss or bad storage.


G Sensor

3-axes accelerometer



136 x 154 x 37 mm






Backup Power

Super Capacitors for power loss emergency shutdown.

Power on LOGO Can be customized


Red LED for system status


Internal, time sync from GPS (if is available)


Support GPS/GLONASS external module (9600 bps)

GPS Stamp

Yes if GPS is available

Time Stamp


Other fixed strings

Can be customized

File Format

AVI for each channel

Record Periods

5 minutes / file

Playback speed

Forward / Rewind 1 – 8x

Power Off Delay

0 seconds, 30 seconds, 3 minutes, 1 hour, 2 hours

Trigger Display

Trigger to display channel can be set by user.

File Protect

Can be set by G-sensor event or by trigger input event.


By IR remote controller. Key tone is available.

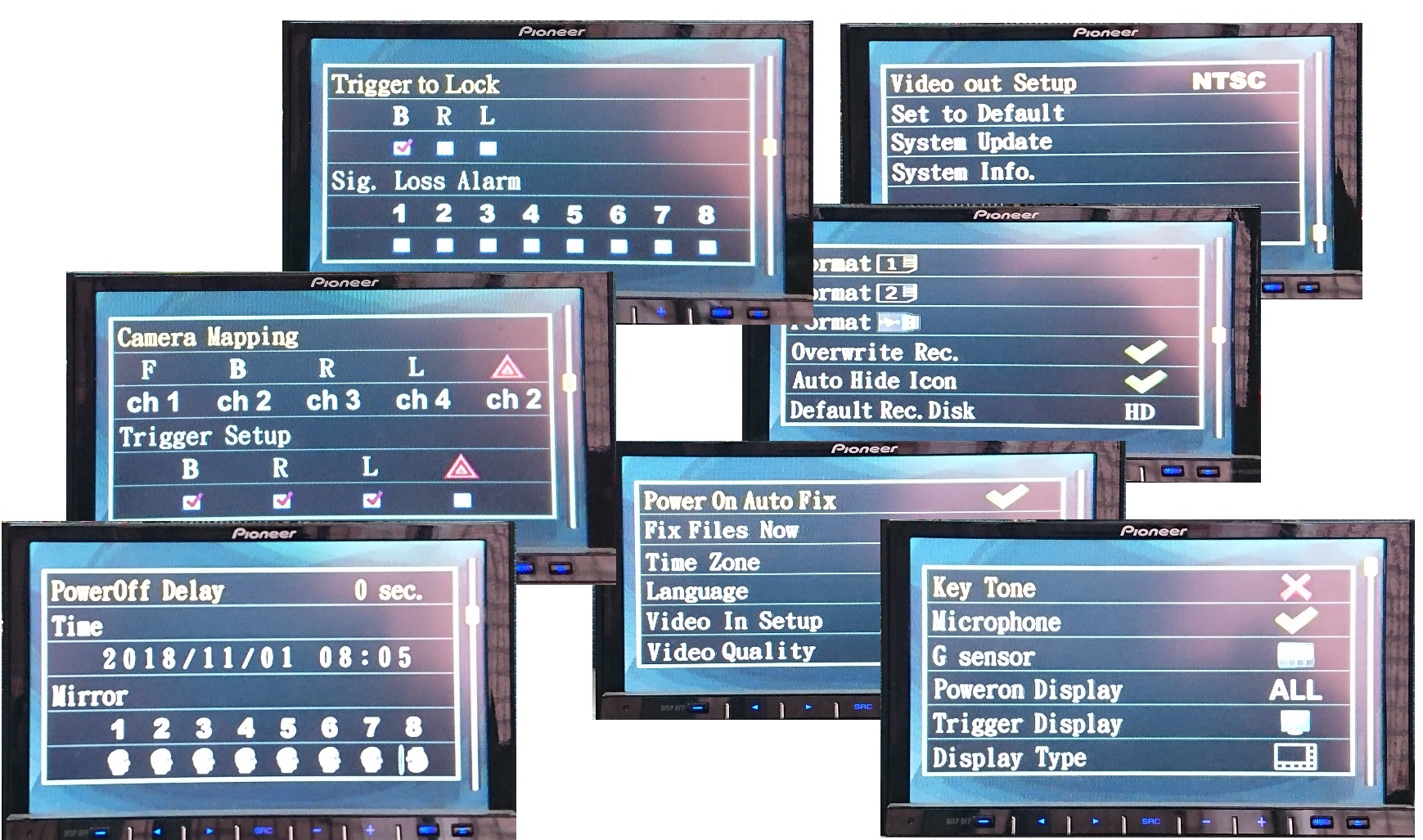

User Interface

Clear and intuitive operation for in-car environment.

SD backup

Normally start recording by 1st SD card. Auto switching to 2nd SD card while 1st SD card is corrupted or is not found.

FW update

By SD card

Design & Manufacture All made in Taiwan


Optional Function: build-in ADAS to CH5

Advanced Driver Assistance Systems (ADAS) uses a specially selected 720P camera mounted in the center of the front windshield, working with GPS or vehicle speed lines, and left and right direction light trigger lines, using image recognition technology to judge car driving behavior, warning in advance of possible dangerous conditions, allowing drivers to take early measures to avoid traffic accidents.

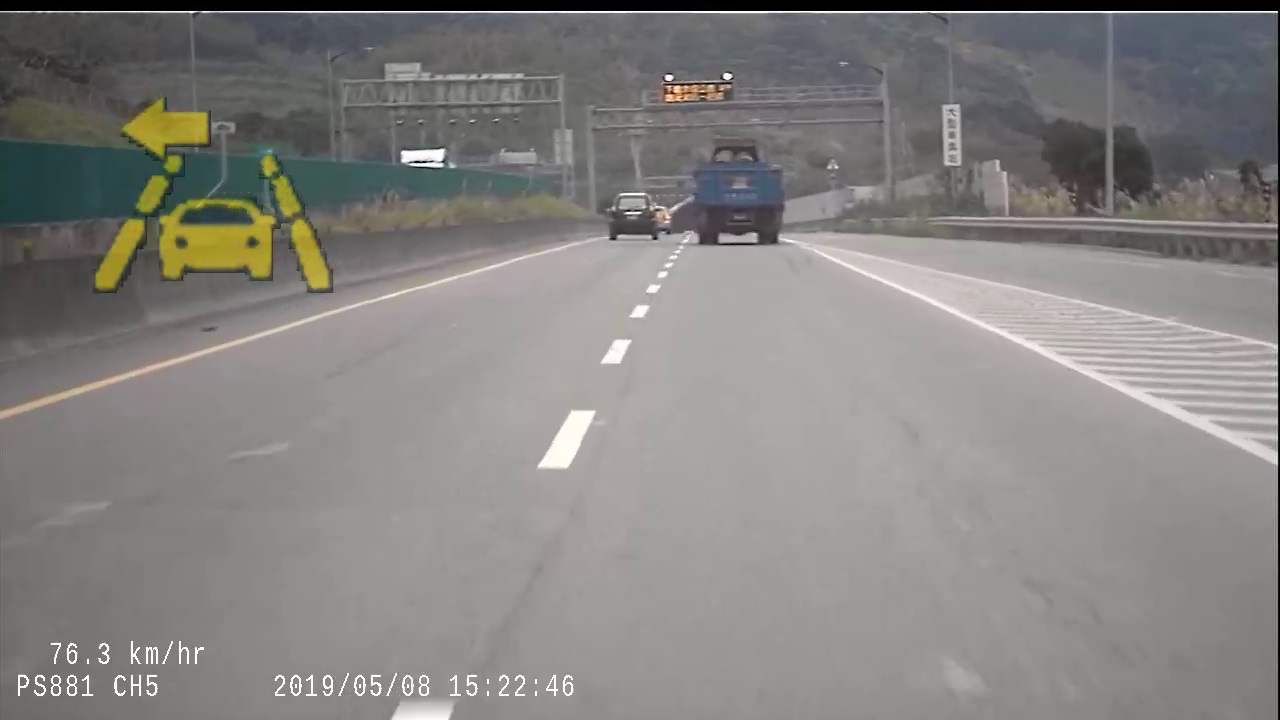

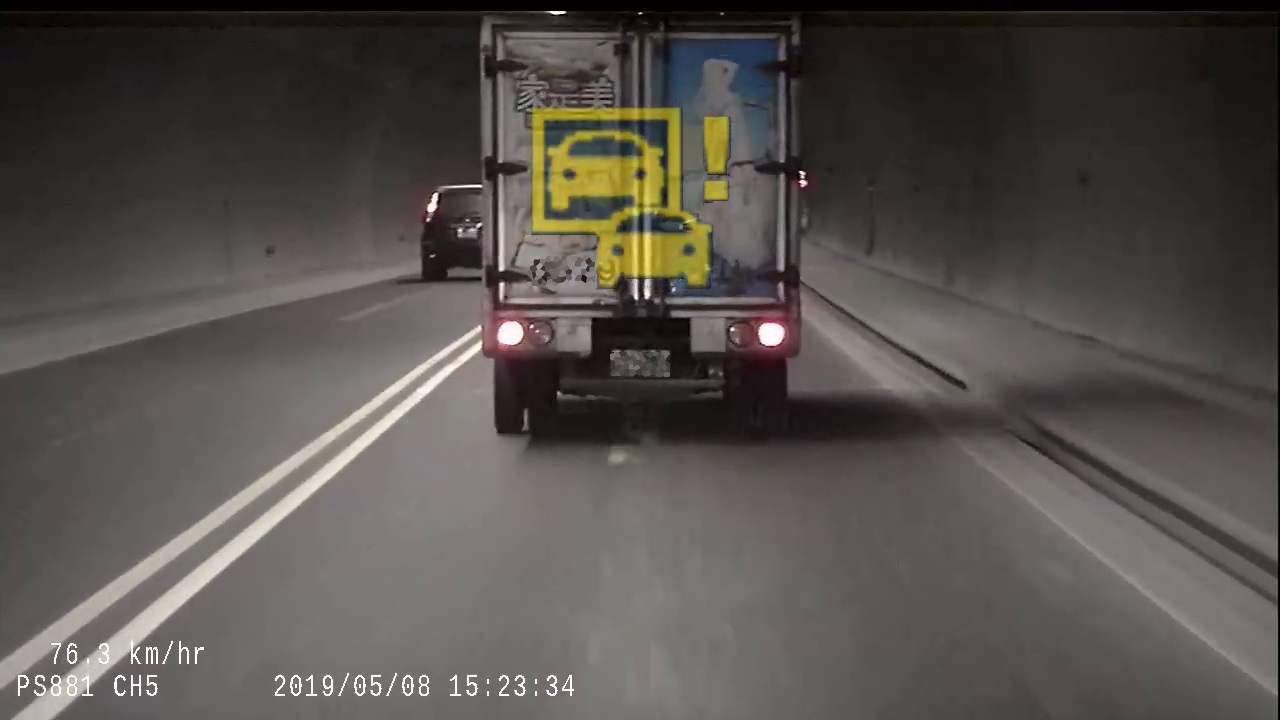

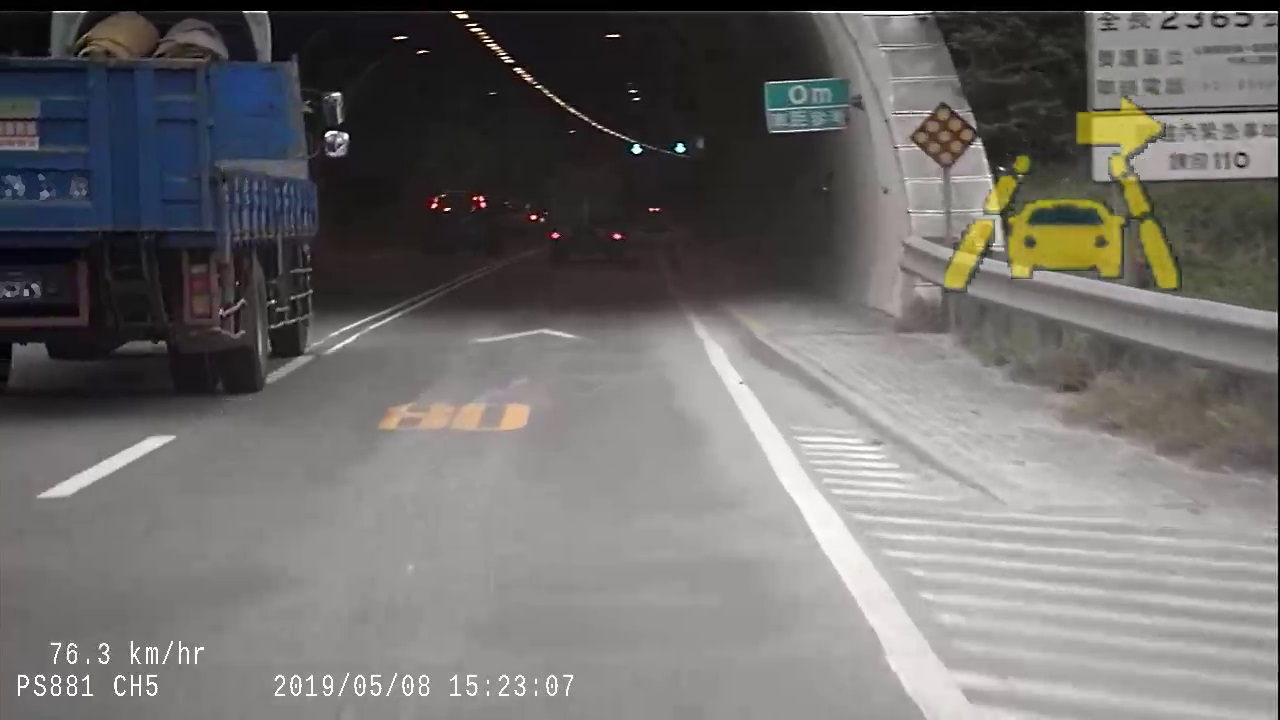

The ADAS system includes a Lane Departure Warning System and a Front Collision Warning System. When the vehicle speed reaches 50Km/Hr or more, it will automatically start to instantly recognize the lane line range and the distance of the vehicle in front. Deviation warning is issued when the driver deviates from the lane and the driver does not apply the corresponding direction light. In addition to the warning symbol on the screen, a three-second long tone is given to the driver; or three short beeps are issued if the vehicle in front is detected to be within 30 meters.

The dedicated camera must be connected to the fifth channel (CH5) of the PS-881 to function, and also this channel can not be set to flip or mirror, otherwise it will not work properly.

The ADAS function is independent operation. As long as the ADAS function is turned on, even if the recording is stopped, or there is no SD card, or during the playback of the recorded files or in menu operation, the ADAS will continue to work, and the LDW or FCW will still be prompted. Note: if it is in the playback mode or menu operation, there is only a beep tone prompt. If it is in the recording state, the warning symbol of LDW or FCW will be displayed on the fifth channel (CH5) screen of the video at the same time, and the warning symbols at that time can be viewed when the recorded files are playeback.
