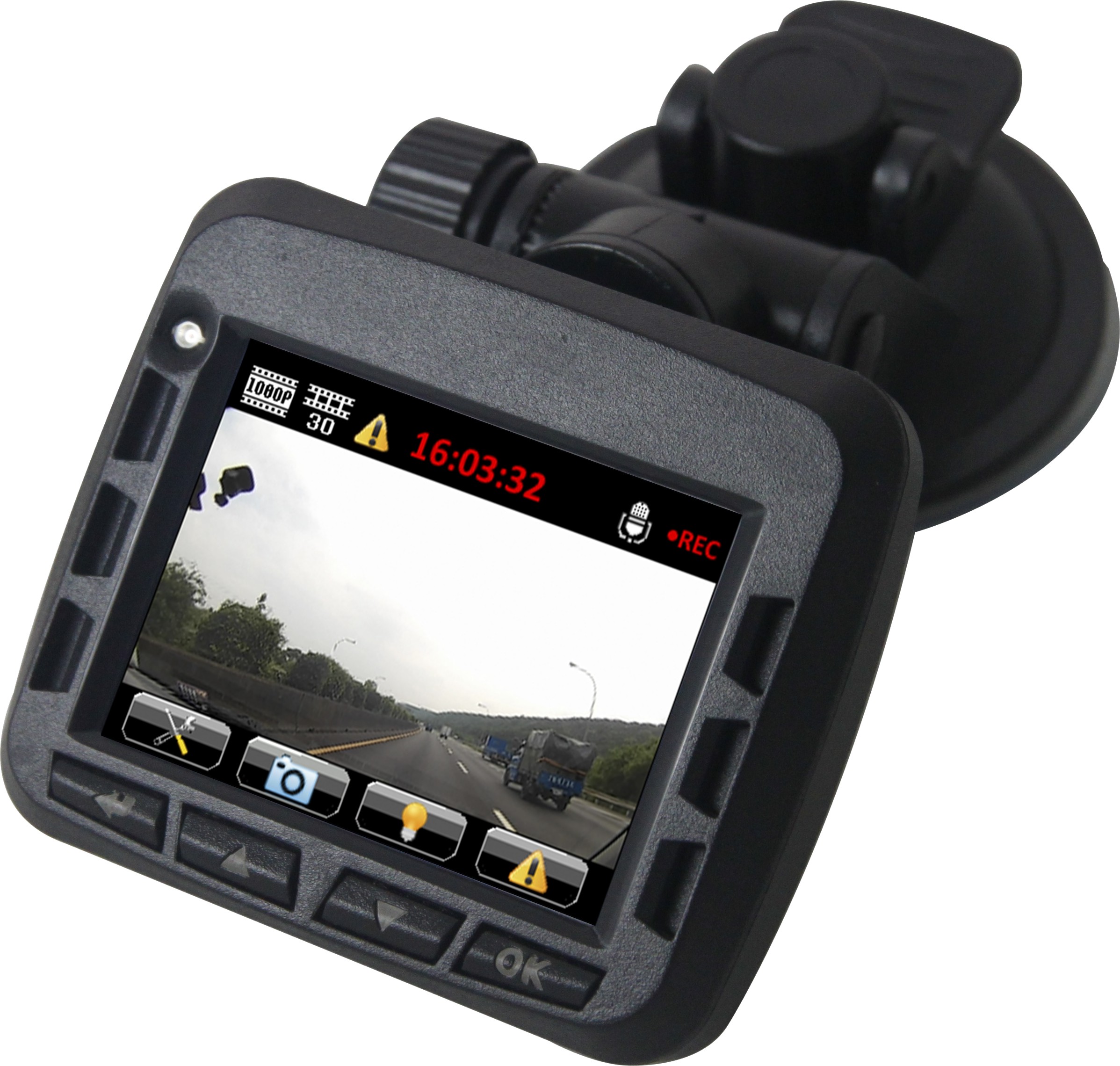

PS-862 1080P Full HD HDR 2CH DVR



Features:

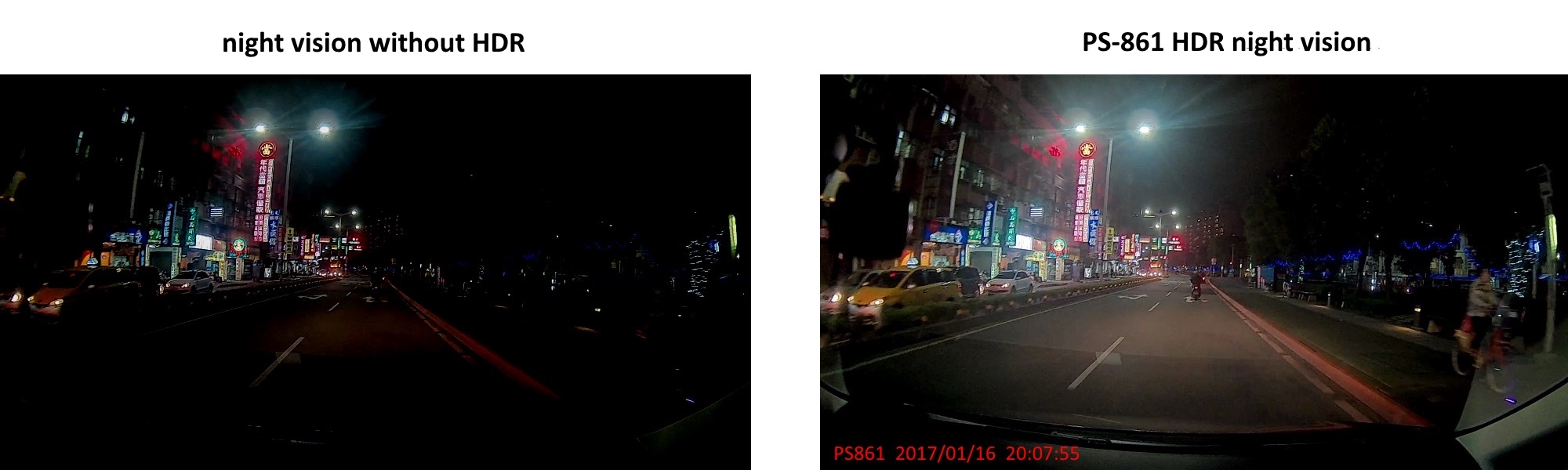

        ☆ 1/2.7” CMOS HDR (High Dynamic Range) image sensor
☆ 6 glass lens, F1.9 aperture, wide view angle (diagonal 146°, horizontal 100°)
☆ Sunplus high quality image processing platform
☆ H.264 High Profile compression technology
☆ 2.0 inch color TFT display
☆ Full HD 1080P HDR 30fps recording
☆ 1080P TVI/AHD 30fps camera for 2nd input
☆ MOV file format
☆ 3 minutes per file
☆ Gapless between files
☆ Micro-SD storage with capacity up to 128GB
☆ Quick power up record in 5 seconds.
☆ Local play back, forward or rewind, 1x~4x play speed
☆ Built-in 3-axis high sensitivity G-sensor
☆ Use super capacitor instead of rechargeable Li battery, long durability and high safety
☆ Video output supports NTSC or PAL system
☆ Built-in Microphone and speaker
☆ LED indicator
☆ Touch Screen Interface (optional)
☆ IR remote control (optional)
☆ Languages: English, Chinese (Traditional), Chinese (Simplified), Japanese
☆ Upgrade Firmware by micro SD card

Specifications:
Operating system: RTOS
Touch Screen Interface: Optional (please contact
     ProSense for detail)
Power Adaptor: DC 12V to 5V
Power Consumption: 3W @ 5V
Operating Temperature: -10 ℃ ~ 70 ℃
Dimension: 60x53x35 mm
Weight:   60g

Interface:
Power Supply: DC 5.0V, mini USB
Video Output: CVBS, 1Vpp, 75 ohm NTSC or PAL selectable
Audio Output: 1Vpp
2nd camera Input:
3.5mm plug including 5V DC output
