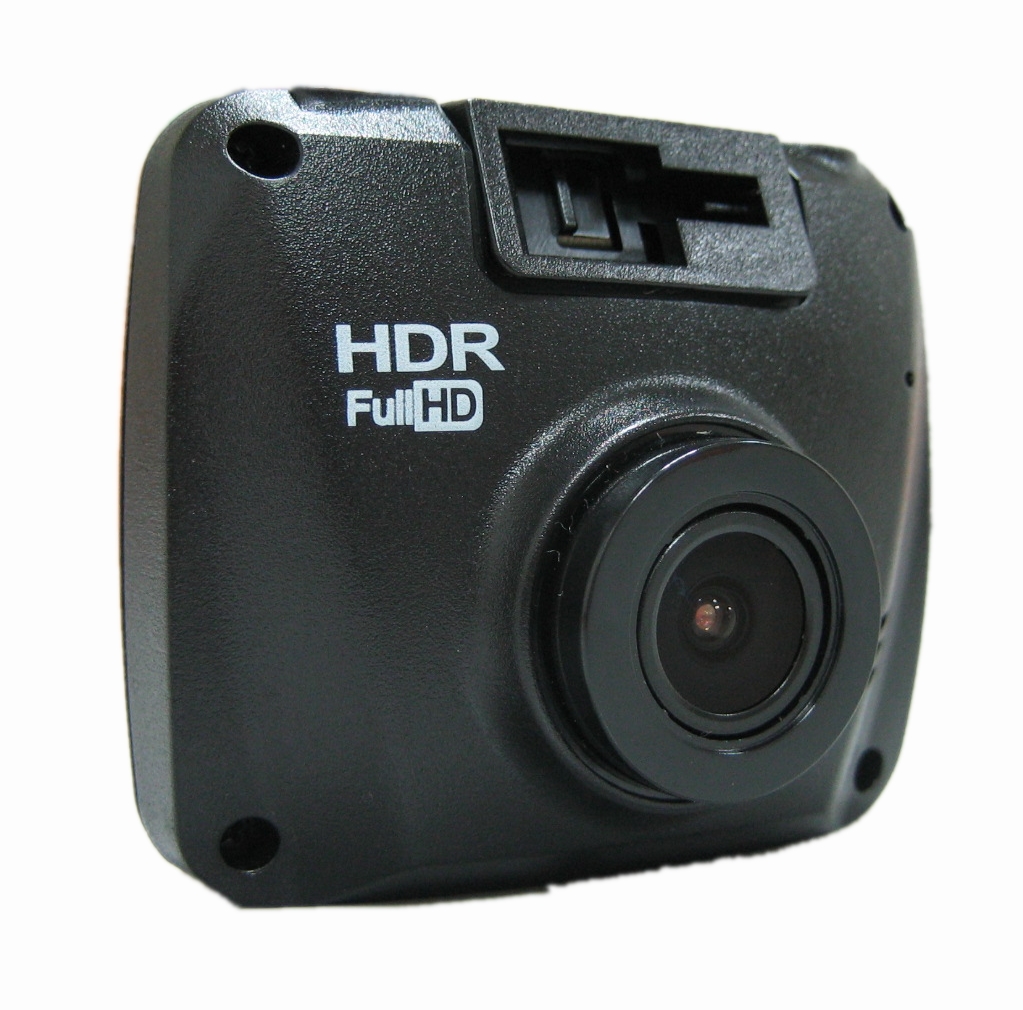

PS-861 1080P Full HD HDR DVR |
|
☆ 1/2.7” CMOS HDR (High Dynamic Range) image sensor
☆ 7 glass lens, F1.9 aperture, wide view angle (diagonal
146°, horizontal 118°)
☆ Sunplus high quality image processing platform
☆ H.264 High Profile compression technology
☆ 2.0 inch color TFT display
☆ Full HD 1080P 30fps recording
☆ MOV file format
☆ 3 minutes per file
☆ Gapless between files
☆ Micro-SD storage with capacity up to 128GB
☆ Quick power up record in 5 seconds.
☆ Local play back, forward or rewind, 1x~4x play speed
☆ Built-in 3-axis high sensitivity G-sensor
☆ Use super capacitor instead of rechargeable Li battery,
long durability and high safety
☆ Video output supports NTSC or PAL system
☆ Built-in Microphone and speaker
☆ LED indicator
☆ Touch Screen Interface (optional)
☆ IR remote control (optional)
☆ Languages: English, Chinese (Traditional), Chinese
(Simplified), Japanese
☆ Upgrade Firmware by micro SD card |
|
Specifications: |
‧Operating system:
RTOS
‧GPS:
Optional. Support track record and automatic time adjustment
‧Touch Screen Interface:
Optional (please contact
ProSense for detail)
‧Power Adaptor:
DC 12V to 5V
‧Power Consumption:
3W
@ 5V
‧Operating Temperature:
-10 ℃ ~ 70 ℃
‧Dimension:
60x53x35 mm
‧Weight:
60g
|
|
‧Power Supply:
DC 5.0V, mini USB
‧Video Output: CVBS, 1Vpp, 75 ohm
NTSC or PAL selectable
‧Audio Output:
1Vpp
‧GPS interface:
NMEA 0183. 4800bps
|
|
|
|
|
|
