PS-836 WDR DVR


Features:



    HD 720P (1280*720) high-definition video recording, 1/2.7” CMOS wide dynamic range image sensor, avoid image blur by glare and/or reflection

    6 glass lens, F1.8 aperture, wide view angle (diagonal 160°, horizontal 100°)

    H.264 High Profile compression technology, clearer video image and smaller recording file size, increase the life of memory card

    2.5 inch color TFT display

    30 frames per second

    AVI format

    Use super capacitor instead of rechargeable Li battery, long life and high safety

    Video output supports NTSC or PAL system

    Local play back,  Play, pause, fast forward (x2~x16), rewind (x1~x16),zoom in (x1~x4)

    Built-in Microphone and speaker

    Touch Screen Interface

    5 minutes per file

    Gapless between files

    Built-in 3-axis high sensitivity G-sensor

    Languages supported: English, Chinese (Traditional), Chinese (Simplified)

    Upgrade Firmware by SD card

    5 keys operation



Specifications:
Operating system: Embedded Linux
GPS: Optional. Support track record and automatic  time  adjustment
Remote Control: Optional (please contact ProSense for  detail)
Touch Screen Interface: Optional (please contact
     ProSense for detail)
Power Adaptor: DC 12V to 5V
Power Consumption: 3W @ 12V
Operating Temperature: -10 ℃ ~ 70 ℃
Dimension: 63x75x40 mm
Weight:  83g

Interface:
Power Supply: DC 5.0V, mini USB
Video Output: CVBS, 1Vpp, 75 ohm
Audio Output: 1Vpp
GPS interface: NMEA 0183. 4800bps

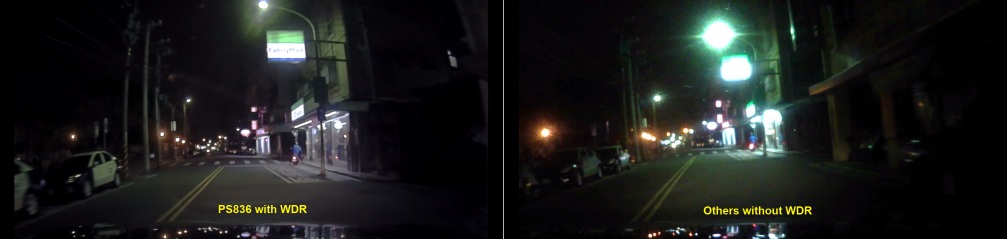

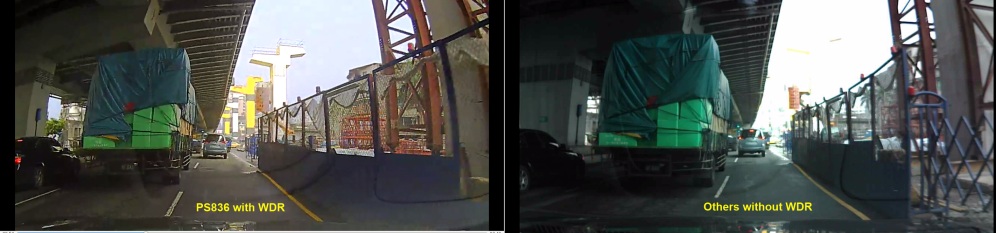

Left pic is PS836 with WDR and right is the others DVR without WDR .
