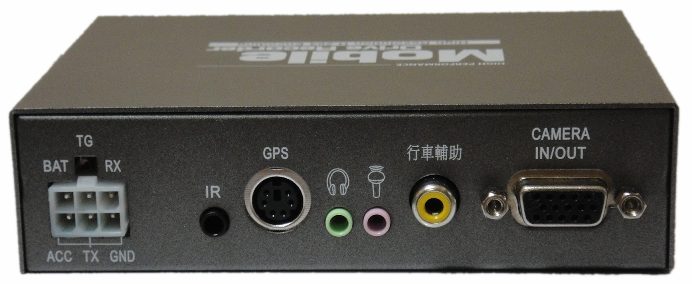

PS-800A (4-CH H.264 DVR)




Features:
  ‧4-channel D1 (720x480) H.264 image processing engine
‧Real Time 30 fps Video recording, play back and live view
‧Record to separate file for each channel
‧5 minutes for a file and cyclic recording (old files replaced by new files)
‧Gapless recording between files
‧Camera signal detection and warning when no signal
‧channel audio recording and playback
‧SD/SDHC memory card with capacity up to 32GB
‧Built-in 3-axis G-sensor
‧GPS receiver interface
‧Record G-sensor and GPS signals with video/audio data
‧Extended recording (30 seconds) after turning off car power
‧Provide power for cameras
‧Reverse/Left/Right turn signal detection and switching display accordingly
‧Back-view camera signal input and output interface
‧Split windows to show 4 channels simultaneously or single channel display
‧Composite video baseband signal (CVBS) output
‧IR Remote control
‧Touch screen interface (please contact ProSense for detail)
‧Firmware upgrade by SD card
‧PC software to review recorded video/audio/G-sensor/GPS data

  Specifications:


Function Specification

Video Recording Format

H.264 baseline profile

Video Frame Rate (fps)

30 for D1, 30 for Half D1, 30 for CIF

Video Resolution

D1 (720x480), Half D1 (720x240), CIF (352x240)

Audio Recording Format

ADPCM

Recoding Behavior

Start recording after POWER_ON and stop recording 30s after POWER_OFF

Storage Type

SD/SDHC memory card, up to 32GB

Display Layout

4 split windows or single channel display

GPS signal

NMEA 0183. 9600bps. Support track record and automatic time adjustment

G-sensor

Built-in 3-axis high sensitivity G-sensor

Reverse/Left/Right Trigger Signal Detection

Detect the change of driving direction and switch appropriate video signal to whole screen automatically

Video Signal Loss Detection and Warning

Monitor video signal of all channels and emit beeping alarm when video signal is lost

Recording Gap

Gapless between files

Language

English, Chinese (Traditional), Chinese (Simplified)

OS

Embedded Linux

Firmware Upgrade

By SD card

LED (red)

Flashing (system on), Off (system off)

General Specification

Video Input / Output

CVBS, 1Vpp, 75 ohm

Audio Input

Microphone

Audio Output

1Vpp

Trigger Input / Output

High active

Remote Control

IR remote control

Touch Screen Interface

Optional (please contact ProSense for detail)

Power Supply

9 ~30 V DC

Power Consumption

4W @ 12V DC ( exclude camera power consumption)

Operating Temperature

-10 ℃ ~ 70 ℃

Dimension

118 * 95 * 27 mm

Weight

115 g
