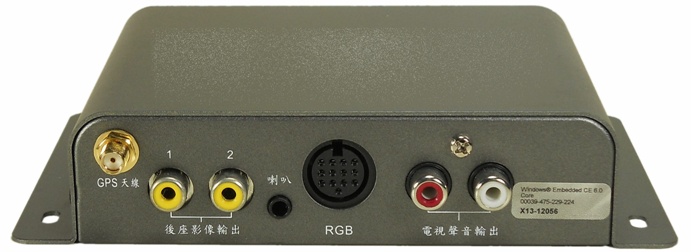

PS-2300 (GPS Navigator with DVB-T Receiver and Video Input)





Features:



l          Built-in GPS receiver (up to 64-channel)

l          Support IR remote control or touch screen operation

l          Support RGB video output or standard TV output formats for various vehicle monitors (480*234 or 800*480)

l          Support AR Navigation with video input signal (video output of camera or DVR)

l          Output GPS NMEA data for DVR application

l          Fully compliant with DVB and MPEG-2 standards

l          In-car DVB-T diversity receiver with dual tuners

l          High mobility support with DiBCOM 9090M demodulator

l          Support Real-time TV recording

l          Support multimedia playback function( MP3, MPEG4, JPEG )

l          Support auto scanning, EPG, channel management, teletext, subtitle, and aspect ratio adjustment

l          Multi-country and multi-language support

l          Compact & light for easy installation

l          Software upgraded through USB port

l          Support IR remote control or touch screen operation

l          Support AR Navigation with video input signal (video output of camera or DVR)

l          Output GPS NMEA data for DVR application

l          1 Video input, 3 video output plus 1 stereo audio output for DVB-T




Specifications:

  Navigation Specifications:
CPU: ARM11 500MHZ (SiRF A4)
Memory: 128MB NAND FLASH / 128MB SDRAM (DDR 166MHZ)
Operating system: Windows CE 6.0 core
Operation: IR remote control, Touch Screen
Storage media: Supports SD card or MMC card
Video output: CVBS & RGB mode
Speaker:  0.5W @ 8Ω
 DTV Specifications:
Input Frequency Range: VHF 170 ~ 230MHz,UHF 450 ~ 950MHz
Channel Bandwidth:
            European:  UHF=8MHz,VHF=7MHz
            Australian:  UHF=7MHz,VHF=7MHz
            Taiwan :  UHF=6MHz,VHF=6MHz
Modulation Modes: QPSK, 16QAM, 64QAM
Guard Interval Modes: 1/32,1/16,1/8,1/4
FEC Modes: 1/2,2/3,3/4,5/6,7/8
VIDEO DECODING:
            Transport Stream : MPEG-II (ISO/IEC 13818)
            Profile Level : MPEG-II MP@ ML
            Video Formats: 4:3, 16:9
            Video Resolution: 720 x 576i(PAL),720 x 480i (NTSC)
AUDIO DECODING :
            MPEG Layer 1&2
            Sampling Frequency  32/44.1/48 Khz
General Specifications:
DC Power: 9~20V DC
Power consumption: 6 W @ 12V DC (MAX)
Operating Temperature: -10°C to +70 °C
Dimension: (w) 154 mm* (L) 98 mm* (H) 32 mm
