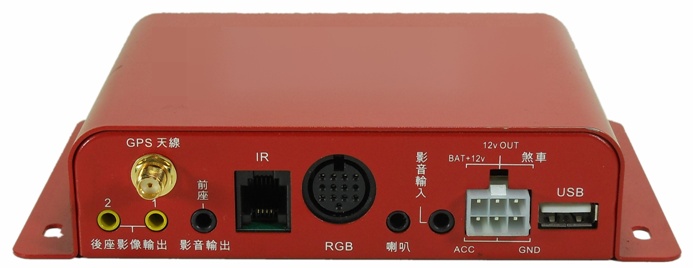

PS-2200  (GPS Navigator with DVB-T Receiver)




Features:
  ‧Built-in GPS receiver (up to 64-channel)
‧Support IR remote control or touch screen operation
‧Support RGB video output or standard TV output formats for various vehicle monitors
　 (480*234 or 800*480)
‧Output GPS NMEA data for DVR application
‧Fully compliant with DVB and MPEG-2 standards
‧In-car DVB-T diversity receiver with dual tuners
‧High mobility support with DiBCOM 9090M demodulator
‧Support Real-time TV recording
‧Support multimedia playback function( MP3, MPEG4, JPEG )
‧Support auto scanning, EPG, channel management, teletext, subtitle, and aspect ratio adjustment
‧Multi-country and multi-language support
‧Compact & light for easy installation
‧Software upgraded through USB port
‧Support IR remote control or touch screen operation
‧3 video output plus 1 stereo audio output for DVB-T



Specifications:


Navigation Specifications:
‧CPU: ARM11 500MHZ (SiRF A4)
‧Memory: 128MB NAND FLASH / 128MB SDRAM (DDR 166MHZ)
‧Operating system: Windows CE 6.0 core
‧Operation: IR remote control, Touch Screen
‧Storage media: Supports SD card or MMC card
‧Video output: CVBS & RGB mode
‧Speaker:  0.5W @ 8Ω
 DTV Specifications:
‧Input Frequency Range: VHF 170 ~ 230MHz,UHF 450 ~ 950MHz
‧Channel Bandwidth:
            European:  UHF=8MHz,VHF=7MHz
            Australian:  UHF=7MHz,VHF=7MHz
            Taiwan :  UHF=6MHz,VHF=6MHz
‧Modulation Modes: QPSK, 16QAM, 64QAM
‧Guard Interval Modes: 1/32,1/16,1/8,1/4
‧FEC Modes: 1/2,2/3,3/4,5/6,7/8
‧VIDEO DECODING:
            Transport Stream : MPEG-II (ISO/IEC 13818)
            Profile Level : MPEG-II MP@ ML
            Video Formats: 4:3, 16:9
            Video Resolution: 720 x 576i(PAL),720 x 480i (NTSC)
‧AUDIO DECODING :
            MPEG Layer 1&2
            Sampling Frequency  32/44.1/48 Khz
General Specifications:
‧DC Power: 9~20V DC
‧Power consumption: 6 W @ 12V DC (MAX)
‧Operating Temperature: -10°C to +70 °C
‧Dimension: (w) 154 mm* (L) 98 mm* (H) 32 mm
